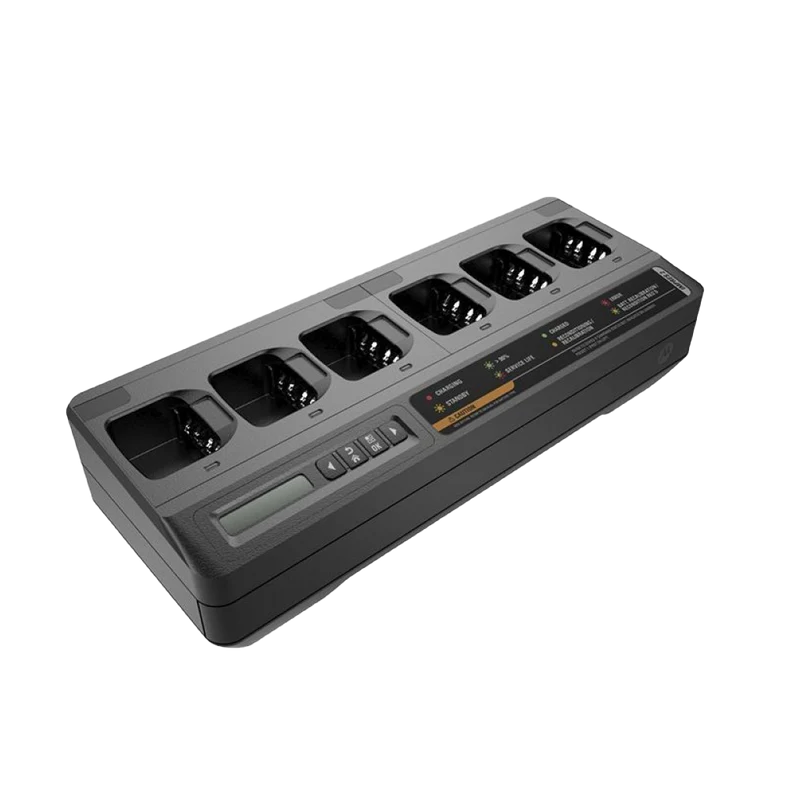

Motorola PMPN4284 Multi-Unit Charger

The Motorola PMPN4284 Multi-Unit Charger is a smart, high-capacity charging station designed to power up to six radios or batteries simultaneously across the XPR Series and select APX Series devices. Equipped with an intuitive display and navigation menu, this unit allows users to monitor charging progress and access battery health diagnostics through its built-in Analyzer Mode in Pocket #1. With USB connectivity for firmware updates and Fleet Management integration, it’s built for teams who rely on streamlined charging and performance tracking in the field or in the station.

Backed by Motorola’s IMPRES™ Smart Energy System, the PMPN4284 intelligently optimizes battery life—extending service by up to 40% while delivering a charging current of 1.5A per pocket. It’s wall-mountable using the optional BR000272A01 bracket and is ideal for command centers, dispatch hubs, or mobile units that require readiness at all times.

Key Features:

• Charges up to 6 XPR and APX Series radios or batteries simultaneously
• IMPRES™ Smart Energy System extends battery life by up to 40%
• Integrated display with navigable menu for real-time battery monitoring
• Analyzer Mode available in Pocket #1 for diagnostics and battery health
• USB port for firmware updates and Fleet Management connectivity
• Optional wall mount capability (BR000272A01)

Specification

• Model: PMPN4284
• Technology: IMPRES
• Number of Charging Pockets: 6
• Charging Current: 1.5A per pocket
• Dimensions: 3.63″ (W) x 17.38″ (H) x 6.75″ (L)
• Weight: 8.7 lbs
• Power Input: 120–240 VAC
• Plug Type: U.S. standard
• Display: Yes
• Color: Black
• Intrinsically Safe / IP Rating: Not specified
• Compatible Radios: XPR 3300e, 3550e, 7350e, 7550e, 7380e, 7580e; APX900/1000/3000/4000 series
• Warranty: 1-Year Manufacturer’s Warranty
