Motorola HAE4002 Antenna – UHF

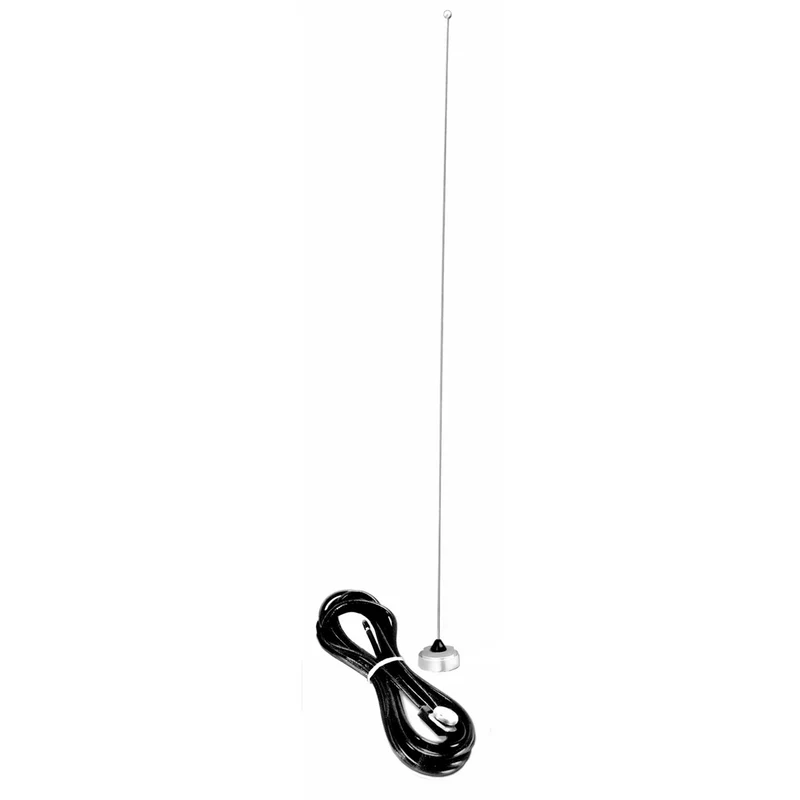

The HAE4002 UHF ¼‑wave antenna is optimally tuned for vehicles operating within the 403–430 MHz frequency band. Its vertical radiation pattern is especially effective in built-up areas where structures may challenge signal reach. The antenna includes a 12‑foot (approx.) RG-58 coax cable and a Mini-UHF male connector that requires crimping upon installation. Mounting is easy via a ¾″ hole or right‑angle bracket. Compatible with multiple Motorola mobile models—such as CM, XPR, XTL, CM200/300, GM300, HT1250, and APX radios—it comes with a 1‑year manufacturer’s warranty.

Key Features

• UHF coverage (403–430 MHz) for broad vehicle radios applications
• Low-profile ¼‑wave design with vertical radiation pattern—ideal in urban environments
• Includes ~12 ft RG-58 coax and Mini-UHF connector for hassle-free installation
• Mounts via ¾″ hole or right-angle bracket—no special modifications needed
• Backed by Motorola’s 1‑year manufacturer warranty

Compatible Radios

• Motorola CM200D/CM300D, CM340/CM360, CDM1250/1550, GM300, HT1250(XLS/LS+),
• Motorola XPR 4300/4350/4500/4550/4580/5350e/5550e, XTL 1500/2500/5000, and APX mobile radios

Specification

• Type or Style: Mobile Antenna
• Frequency Band: UHF
• Frequency Range: 403–430 MHz
• GPS Capable: No
• Antenna Type: 1/4 Wave
• Mounting Style: Through-Hole
• Color: Black
• Warranty: 1-Year Manufacturer’s Warranty
