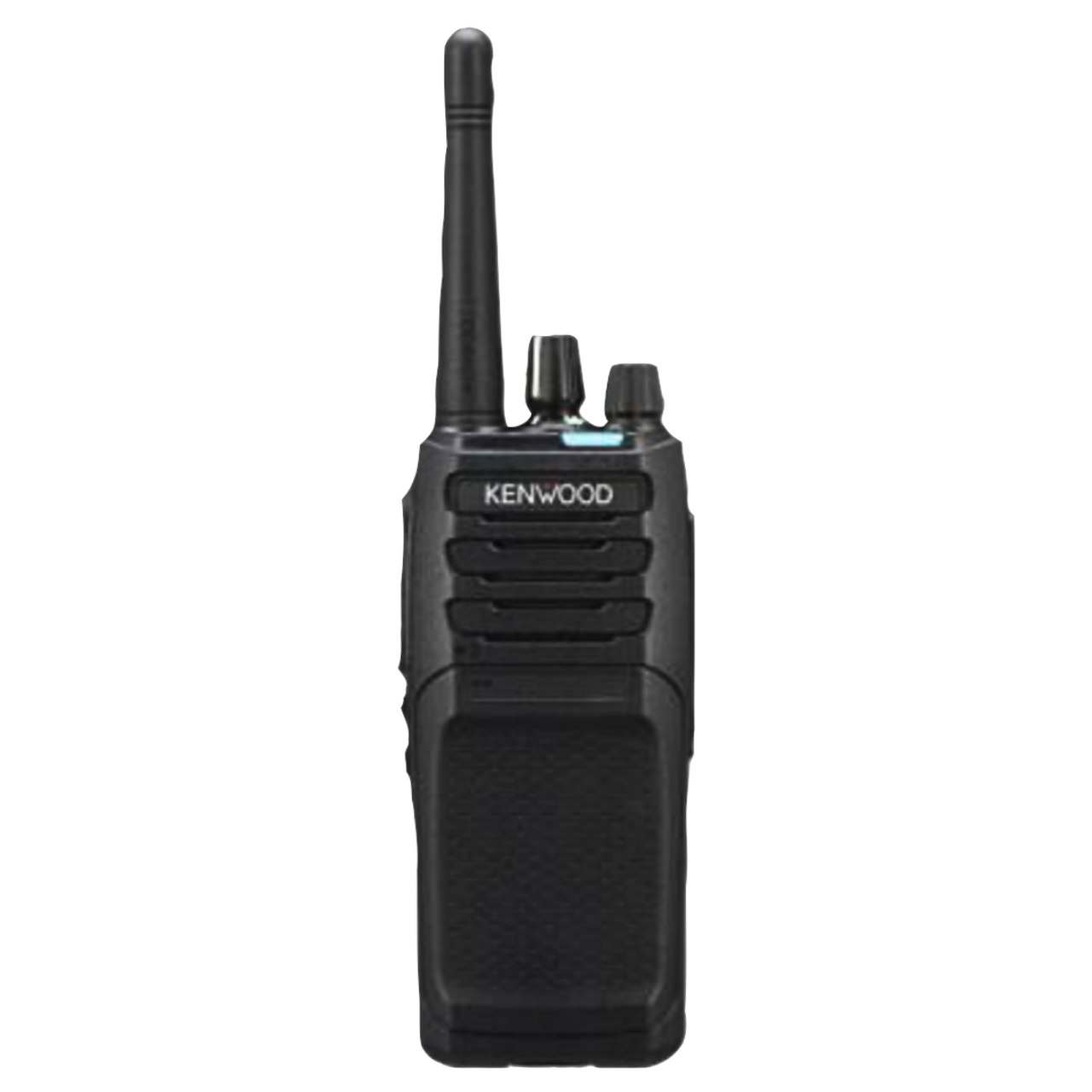

Kenwood NX-1300 Digital UHF Radio
Kenwood NX-1300 Digital UHF Radio
Kenwood introduces its latest digital radio model, the NX-1300. This groundbreaking device is Kenwood Radio’s inaugural offering with both TDMA (Time Division Multiple Access) and FDMA (Frequency Division Multiple Access) capabilities. Notably, the NX-1300 allows seamless frequency alignment with other radio fleets, even if they belong to different brands. Whether you’re a seasoned professional or a radio enthusiast, the Kenwood NX-1300 promises enhanced communication and compatibility. 📻🌐
Kenwood NX 1200 / 1300 Features
- Multi-Protocol Digital Radio:
- Designed to operate under both NXDN and DMR digital protocols, as well as FM analog protocols.
- Display Options:
- Choose from two display options:
- Direct & Intuitive LCD with Standard Keypad: Provides easy navigation.
- Basic Enclosures: Simplified design for straightforward use.
- Choose from two display options:
- Easy-to-Read Display:
- Features an 8-digit LCD with high-contrast, white backlit display.
- Large 7-color LED indicator on the top panel for visual alerts.
- Functional Indicators:
- Selective Power-On LED.
- Selective Call Alert LED.
- Battery Level Indication.
- Multi-Status Function Indication.
- RF Output Power:
- 5W output power for both VHF and UHF frequencies.
- Mixed Zone Capability:
- Supports both analog and digital communication within the same zone.
- KENWOOD Audio Quality:
- Renowned TX/RX audio profile with an optimizable digital processor.
- Audio Equalizer settings: Flat, High, Low.
- Auto Gain Control options: On, High, Low, Off.
- Noise Suppressor for clear communication.
- Microphone type settings customization.
- Scan Functions:
- Multiple scan modes:
- Dual Priority.
- Single Priority.
- Single Zone.
- Multi.
- Normal Scan.
- Multiple scan modes:
- Hands-Free Operation:
- VOX (Voice-Operated Transmit) and PTT (Push-to-Talk) functionality.
- Semi-VOX mode triggered by voice.
- Emergency Features:
- Customizable Emergency Profile.
- Lone Worker function for safety.
- Max/Min Volume setting and volume control.
- Voice announcements.
- Remote Management:
- Remote Stun/Kill/Check capabilities.
- Front Panel Programming Mode (for Keypad model).
- Electronic Serial Number (ESN) for identification.
- Durability and Protection:
- MIL-STD-810 C/D/E/F/G compliant for ruggedness.
- IP54 and IP55 ratings for water and dust resistance.
- Intrinsically safe option (available later) for hazardous environments.
Whether you’re a professional user or an enthusiast, the Kenwood NX 1200 and NX 1300 radios offer advanced features and reliable performance. 📻🔊
- Pre-set Frequencies:
- NX-1200: 136-174 MHz (VHF) and 450-520 MHz (UHF).
- NX-1300: 400-470 MHz (UHF).
- Max. Channels and Zones:
- Max. Channels per Radio: 260 (64 for basic model).
- Number of Zones: 128 (4 for basic model).
- Max. Channels per Zone: 250 (16 for basic model).
- Channel Spacing:
- Analog: 30 kHz, 25 kHz, 15 kHz, 12.5 kHz.
- Digital: 12.5 kHz, 6.25 kHz.
- Power Supply:
- 7.5 VDC ±20%.
- Battery Life:
- DMR (Digital Mobile Radio):
- KNB-45L (2000mAh): Approx. 14.5 hours (Analog/NXDN).
- KNB-69L (2550mAh): Approx. 19 hours (Analog/NXDN).
- DMR (Digital Mobile Radio):
- Operating Temperature (Radio only):
- -22°F to +140°F (-30°C to +60°C).
- Frequency Stability:
- ±0.5 ppm (-30 to +60°C; +25°C Ref.).
- Antenna Impedance:
- 50 Ω.
- Dimensions (W x H x D, Projections Not Included):
- Radio with KNB-45L/82LCM: 2.13 x 4.84 x 1.32 in (54 x 123 x 33.5 mm).
- Radio with KNB-69L: 2.13 x 4.84 x 1.48 in (54 x 123 x 37.5 mm).
- Weight (Radio Only):
- 6.17 oz (175 g).
- FCC ID:
- K44501000.
- IC Certification:
- 282F-501000.
This radio requires an FCC license for operation in the United States. It is FCC-certified and legally authorized for sale in the U.S.
| Weight | 1 lbs |
|---|
Package includes
• Li-ion Battery (KNB-45L)
• Fast Charger (KSC-35SK)
• Antenna [KRA-26M(VHF)/27M(UHF)]
• Belt Clip (KBH-10)
