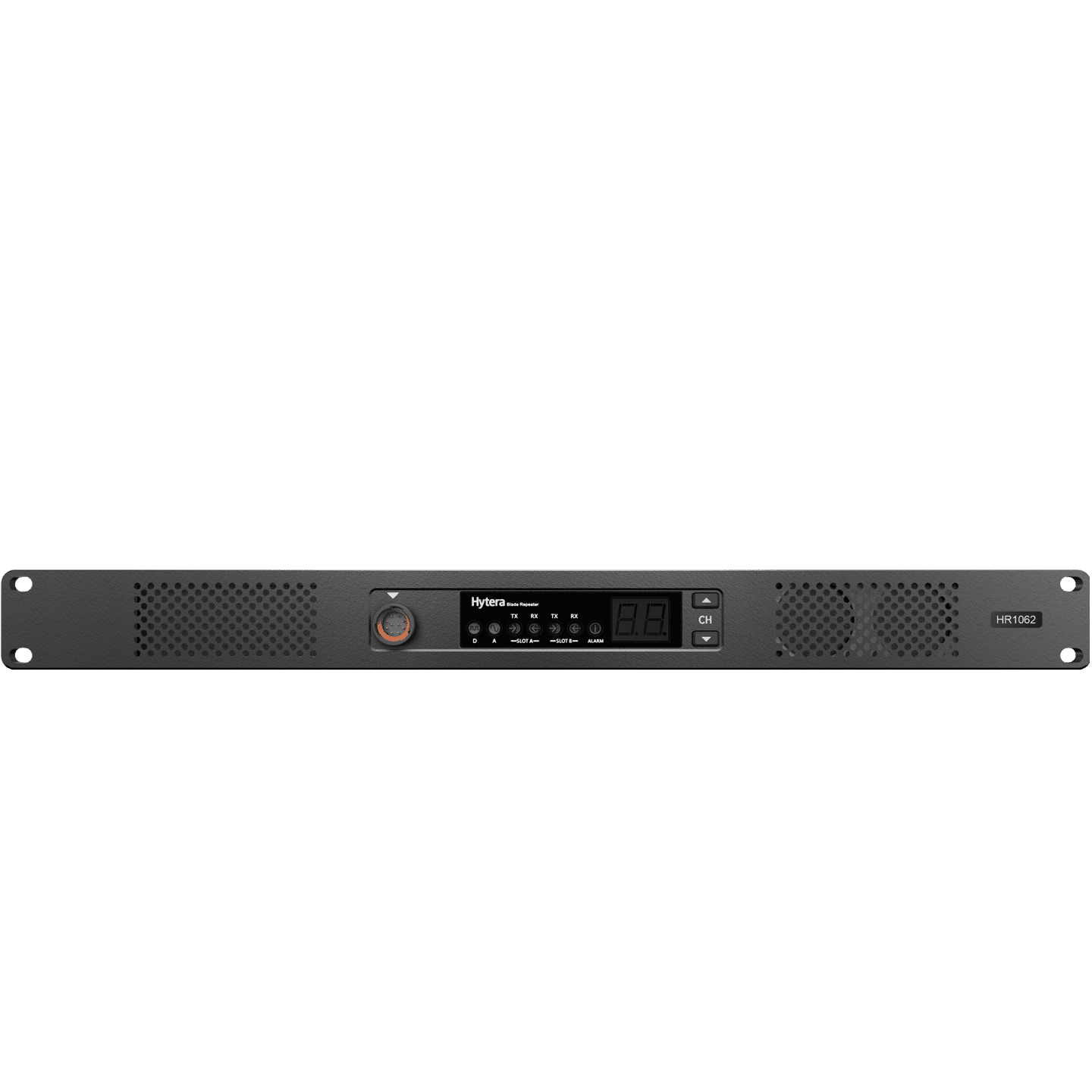

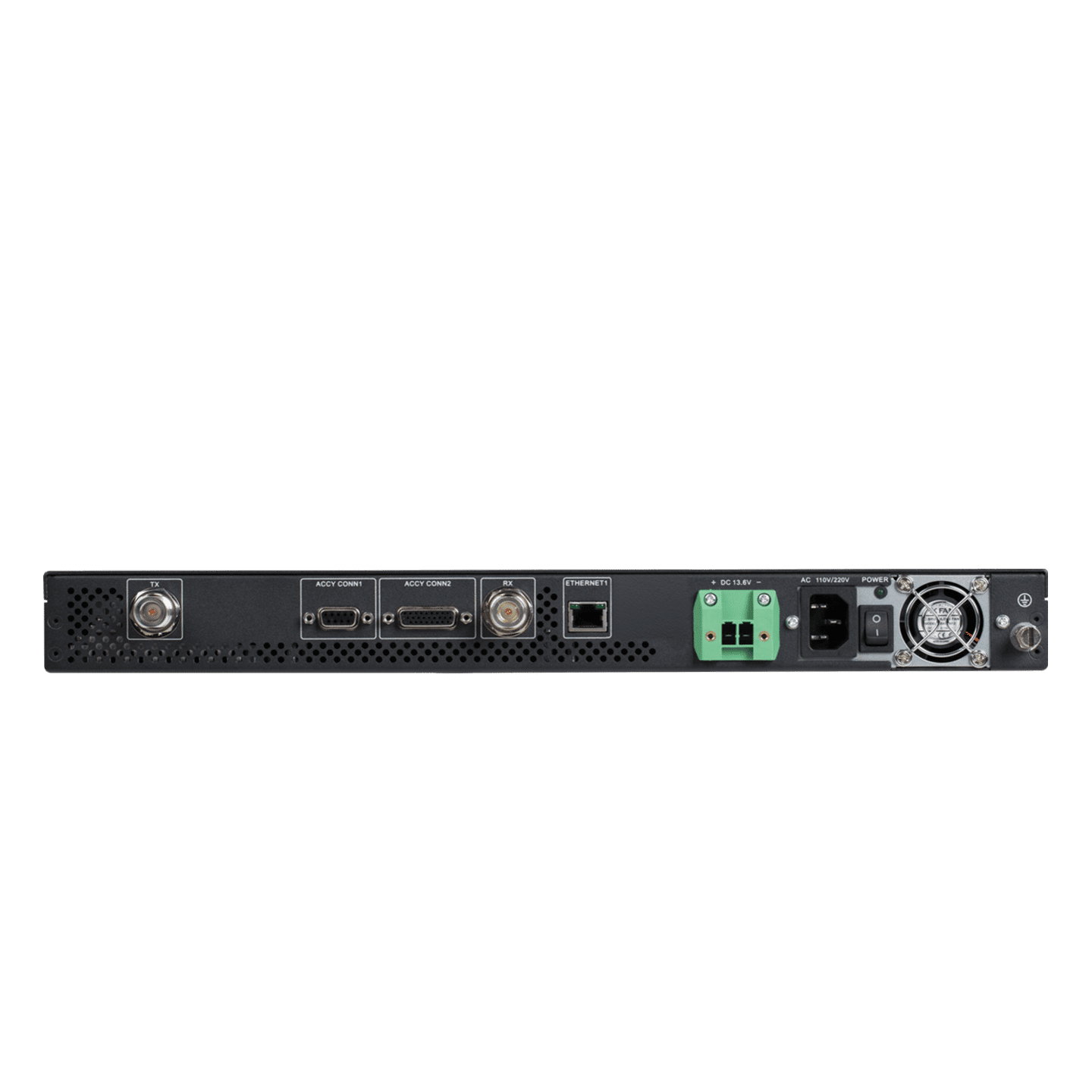

Hytera HR1062 DMR Repeater
$2,290.00
H-Series DMR Digital 1U Repeater
The Hytera HR1062 H-Series DMR Repeaters are the next-generation in creative style and functionality that elevates the industry standard in professional two-way radios.
The HR1062 is the new state-of-the-art in digital radio communications, providing a more efficient experience with loud and clear audio, support for multiple types of radio and communications systems, and extended range.
The HR1062 features AC and DC auto-switching power, two simultaneous TDMA voice channels, high performance cooling, and all in a compact 1U form factor.
Download the HR1062 Data Sheet
Functions
Compact 1U Form Factor
The 1U height is half that of conventional repeaters, and the HR1062 features a in-built power supply to save valuable rack space.
AC/DC Auto Switch
The HR1062 supports AC/DC auto switching for locations with different power sources, power redundancy, and eliminates the cost and space required for power adapters.
Analog & Digital Auto Switch
Mixed channel mode detects the receiving signal and automatically switches between analog and digital mode to provide a simple migration path.
Reliable Operation
Wide Coverage
DMR – 2 TDMA 2 Time Slots
Higher Security
Technical Specifications
General
- Frequency Range
- UHF 400-470MHz , VHF 136-174MHz
- Channel Capacity
- 64 Channels
- Channel Spacing
- 12.5kHz / 20kHz / 25kHz
- Operational Voltage
- DC: 13.6V ±15%
AC: 100-120V - Current Consumption
- DC: Standby ?0.9A, Transmitting ?12A
AC: Standby ?0.35A, Transmitting ?1.2A - Weight
- 17lb 10oz (8.0 kg)
- Dimensions (HxWxD)
- Standard 1U: 13/4” x 19” x 143/4” (44 x 483 x 366mm)
- Frequency Stability
- ± 0.5ppm
- Antenna Impedance
- 50?
- Duty Cycle
- 100%
- Networking
- Conventional Mode, MPT and XPT Trunking, Tier III
Trunking Upgrade Capability, *Digital Trunking Lite
(*coming soon) - Display
Receiver
- Digital Sensitivity
- 0.2?V (BER5 5%)
0.18?V (Typical)/BER 5% - Analog Sensitivity
- 0.16?V (Typical) (12dB SINAD)
0.18?V (12dB SINAD) - Adjacent Selectivity
- TIA-603: 65dB@12.5kHz, 75dB@20/25kHz
ETSI: 60dB@12.5kHz, 70dB@20/25kHz - Spurious Response Rejection
- TIA-603: 80dB@12.5/20/25kHz
ETSI: 80dB@12.5/20/25kHz - Intermodulation
- TIA-603: 75dB@12.5/20/25kHz
ETSI: 70dB@12.5/20/25kHz - Blocking
- 90dB
- Hum and Noise
- 40dB@12.5kHz, 43dB@20kHz, 45dB@25kHz
- Rated Audio Distortion
- ?3%
- Audio Response
- +1 to -3dB
- Conducted Spurious Emission
- ?1GHz: <-57dBm
>1GHz: ?-47dBm
Transmitter
- RF Power Output
- 5-50W adjustable
- FM Modulation
- 11K0F3E @ 12.5kHz
14K0F3E @ 20kKh
16K0F3E @ 25kHz - 4FSK Digital Modulation
- 12.5kHz Data Only: 7K60FXD
12.5kHz Data and Voice: 7K60FXW - Conducted/Radiated Emission
- Operating: ?1GHz: -36dBm
>1GHz: -30dBm
Standby: ?1GHz: -57dBm
>1GHz: -47dBm - Modulation Limiting
- ±2.5kHz @ 12.5kHz
±4.0kHz @ 20kHz
±5.0kHz @ 25kHz - FM Hum and Noise
- 40dB @ 12.5kHz, 43dB @ 20kHz, 45dB @ 20/25kHz
- Adjacent Channel Power
- 60dB @ 12.5kHz, 70dB @ 20/25kHz
- Audio Response
- +1 to -3dB
- Audio Distortion
- ?3%
- Digital Vocoder Type
- AMBE+2TM
- Digital Protocol
- ETSI-TS 102 361-1,-2,-3
Environmental
- Operating Temperature
- -22°F to +140°F (-30°C to +60°C)
- Storage Temperature
- -40°F to +185°F (-40°C to +85°C)
Ordering Information
- HR1062-U1
- DMR Repeater UHF 400-470MHz, 5-50W,
DMR Tier II & Analog Conventional Mode - HR1062-V1
- DMR Repeater VHF 136-174MHz, 5-50W
DMr Tier ll & Analog Conventional Mode
| Weight | 18 lbs |
|---|
